RXV 752

BOATS /
FISHING /
RXV 752

Our RXV series features a 15° V-Hull to allow for a smooth ride in heavy chop while still having the ability to access shallow water. Other features include bow storage, aerated livewells, under seat storage, and large rear decks with storage. Constructed from .100 gauge aluminum and includes a .125 gauge aluminum tread plate floor. The caprails are extruded and over sized to provide maximum strength. The 3/16th extruded center keel completes the heavy duty construction to make the RXV Series one of the toughest on the market.

SPECIFICATIONS

TOP FEATURES

Fiberglass 52" side console with 9.5 gallon aerated livewell
Fiberglass 52" center console with 12 gallon aerated livewell

Rear bench seat box with operators seat
Flush rear deck with two storage boxes

REQUEST A BROCHURE

SPECIFICATIONS

Length:

16'

Beam:

72"

Bottom Width:

52"

Side Depth:

24"

Gauge:

.100

HP Rating:

Weight Cap:

1100

Persons Cap:

5/641

Approx Weight:

572

Transom Height:

20"

STANDARD
FEATURES

ELECTRONICS

• Covered & floored area for battery & fuel tank

• LED courtesy light

• 8 gauge trolling motor wiring

• LED removable navigation lights

• Bilge pump

• 12 volt accessory outlet with USB

• Tilt-trim switch

• Two battery trays

• Transducer bracket

SAFETY & COMFORT

• 15° all-welded V hull

• NMMA® certified

• Stainless steel bow & stern eyes

• All aluminum floors & decks

• 5052 aluminum

• .125 gauge tread plate floor

• Low bow deck

• Side or center console windshield

• Bow storage box

• Four stainless steel base plates (side console)

• Five stainless steel base plates (center console)

• Two fold down fishing seats with pedestals

• Four nylon cleats

CUSTOM DETAILS

• Choice of standard paint

• Available with a variety of outboards

• Side panels

• Over sized extruded caprail with accessory track & rub rail

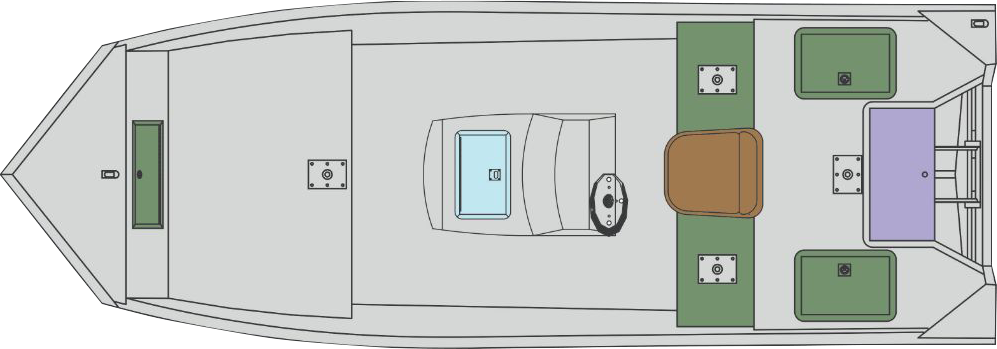

FLOOR PLAN

Storage
Battery Storage
Livewell
Seating

Standard

Kilim Beige

Olive Drab

Sharkskin

Tan

Camo

Mossy Oak® Shadow Grass®

Natural Gear®

Mossy Oak® Break Up®

SeaArk Old Oak®

SeaArk Water Oak

Timber Real Tree

Mossy Oak® Bottomland

Urethane

Black Magic

Bloodline Red

Coastal Green

Mystic White

Sapphire Blue

Smoked Quartz

Standard

Grey

Olive Drab

Tan

Camo

Mossy Oak® Break-Up®

Mossy Oak® Shadow Grass®

SeaArk Water Oak

6" Stainless Steel Cleat

Stainless steel cleats are available to be added to any model. If boats already have cleats, they can be updated to stainless steel.

Dimensions: 6" L x 1" W x 1 3/16" H

8" Aluminum Cleat

Aluminum cleats are available to be added to any model. Cleats are welded on.
Dimensions: 8" L x 2 3/16" W x 1 3/4" H

Accessory Tray with 12 Volt Plug & Light

This upgraded version features a 12-volt outlet plug along with plenty of room to store all of your miscellaneous items and your standard-size cup holder.

This is an upgrade from the regular accessory box. To use the 12 Volt Plug must be wired to the boats electrical through the covered wiring. Light shines in three colors: red, blue, and white.
Dimensions: 16” L x 6” W x 3” H

Accessory Tray with Cup Holder

The accessory box features a storage area for hooks, weights, and other miscellaneous items. It also features a cup holder to fit cans or cups.

Mountable anywhere on the caprail.
Dimensions: 12” L x 6” W x 3” H

Aluminum Center Console no Forward Box - 52"

Available for 52" Jon models only. Can be ordered loose or installed, color matches boats exterior. Livewell cushions is standard.

Dimensions: 21 5/8" L, 24" W, 32 3/16" H

For boat without floor, must order floor plate when installed.

Part number to use when ordering from dealer:
2CON013027 - Loose
2CON013027-I - Installed
2CON013027A - Loose with steering
2CON013027A-I - Installed with steering
2FLOCENTERCONSOLE - Floor plate

Aluminum Center Console Windshield - 52"

Available for 52" aluminum center consoles only.

Dimension: 23” L x 3/16” W x 17 11/16” H

Aluminum Center Console with Forward Box - 52"

Available for 52" Jon models. Forward box is a 12 gallon livewell. Can be ordered loose or installed, color matches boats exterior. Livewell cushions is standard.

Dimensions: 43 5/8" x 24" x 32 3/16"

For boat without floor, must order floor plate when installed.

Part number to use when ordering from dealer:
2CON013028 - Loose
2CON013028-I - Installed
2CON013028A - Loose with steering
2CON013028A-I - Installed with steering
2CON013028B - Loose with livewell kit
2CON013028B-I - Installed with livewell kit (must be ordered with electrical option)
2CON013028C - Loose with livewell and steering
2CON013028C-I - Installed with livewell and steering (must be ordered with electrical option)
2FLOCENTERCONSOLE - Floor plate

Aluminum Side Console no Forward Box - 52" & 60"

Available for 52" and 60" Jon models. Can be ordered loose or installed, color matches boats exterior color.

Dimensions for 52" and 60": 24 5/16" x 27 1/16" x 26 5/16"

Does not include shift control bracket. For boats with no floor, must order floor plate when ordered installed.

Part number to use when ordering from a dealer:
2CON017694 - Loose
2CON017694-I - Installed
2CON017694A - Loose with steering
2CON017694A-I - Installed with steering
2FLOSIDECONSOLE - Floor plate

Aluminum Side Console with Forward Box - 52" & 60"

Available for 52" and 60" Jon models. Forward box is a 9.5 gallon livewell. Can be ordered loose or installed, color matches boats exterior.

Dimensions for 52" and 60": 37 9/16" L x 27 1/16" W x 26 5/16" H

Does not include shift control bracket. For boat with no floor, must order floor plate when ordered installed.

Part number to use when ordering from a dealer:
52" & 60" numbers
2CON013736 - Loose
2CON013736-I - Installed
2CON013736A - Loose with steering
2CON013736A-I - Installed with steering
2CON013736B - Loose with livewell kit
2CON013736B-I - Installed with livewell kit (must be ordered with electrical option)
2CON013736C - Loose with livewell and steering
2CON013736C-I - Installed with livewell and steering (must be ordered with electrical option)
2FLOSIDECONSOLE - Floor plate

Anti-Feedback Steering Upgrade

Antifeedback steering is available as an upgrade for a variety of models and standard on specialty models.

Auto Bilge Pumps

Auto Bilge Pumps are available as options for Jons and as an upgrade to a variety of models.

Part numbers to use when ordering from dealer:
2BIL1234V - V's
2BIL1234MV - MV's or FX
2BIL1234MVT - Tunnels

Base Plate

Base plates are added to provide additional areas for fold-down seats and pedestals. Base plates are stainless steel threaded.

Batteries

Add batteries to help you hit the ground running when you get your new boat.

Options:
550 CCA Starting Battery
1000 CCA Starting Battery
Trolling Motor Battery
Minn Kota Battery Chargers
2 banks 10 amp
2 banks 15 amp
3 banks 15 amp

Camouflage Accessories

Most accessories are able to be camouflaged to match the boats camo color.

Options:
Engines
Cabin
Parts

Camouflage Paint

Choose from 4 different camo patterns to upgrade that match your hunting needs.

Camo Options:
Mossy Oak® Break Up®
Mossy Oak® Shadow Grass®
Nat Gear
SeaArk Water Oak

Captains Chair

Available for both side or center console models the captains chairs provide a comfortable ride. Includes base and pedestal.

Dimensions: 22" L x 19" W x 22 1/2" H
Does not include slider, but can be added.

Cast & Blast Livewell

An 11 gallon livewell that comes with tackle tray and drink holder.

Dimension: 51 3/4" L x 16 1/2" W x 14" H

Cup Holder

Our caprail cup holder is a handy accessory. Move it around any where on the boat to make it convenient to reach your drink. The holder is able to fit soda cans and standard size glasses.
Dimensions: 4" L x 3 3/4" W x 3 3/4" H

Cutting Board

The cutting board is great for cutting bait or for providing an extra work space in the boat. Made from plastic the board is 16" x 20" and features a raised edge to keep items on the board and slots for a filet knife and pliers.

The board attaches by a metal piece fitted into a slot on the piece that fits into the caprail and is secured with a quick pin.

Depth Finder Bracket

The depth finder bracket is used for small depth finders not mounted to the console. This allows for move ability to keep your system near you whether in the bow or stern.

Dimensions: 6" L x 6" W x 1 1/2" H

Double Rod Holder

The Double Rod Holder is a piece of .125 gauge aluminum that has a base with space for two rods and a fan like top with 5 slots to fit the rods in multiple positions.

Doubler Plate

Doubler plates must be ordered when adding base plates to various areas on boats. Base plate is included.
Dimensions: 16" L x 16" W x 3/16" H

Dry Box

The Dry Box features a hinged lid that closes around the rubber sealed edge to create a watertight seal. This box provides handy storage along the caprail for small items.

Dimensions: 8" L x 12" W x 8" H

Dual Steering Upgrade

This system uses two steering cables, from the same helm, tensioned against each other, allowing for more control and less play in the steering.

Best option when steering will not be upgraded to anti-feedback or hydraulic.

Duck Blind Bracket

The Duck Blind Bracket is made for hunters to bolt their own duck blind onto the brackets to prevent from having to mount to the boat. These are 4" square brackets and are made from .125 gauge aluminum.

These can be purchased in any amount to create the perfect layout for a duck blind.

Engine Installation Options

Customize your engine while your boat is still on the factory floor!

The following list is available options that can be chosen when purchasing an engine with a boat to be rigged at the factory.
Tiller Steer Engine Rigged
Under 150 HP Engine Rigged
Over 150 HP Engine Rigged
Drill Transom
Lake Testing
Water Seperator
Engine Prep (oil & starting engine)
Tiller Kit Installation on Non Tiller Motor

Eye Ring

The Eye Ring is creates an ideal spot anywhere along the caprail for tying on bumpers, fish baskets, or chum bags.
Dimensions: 6” L x 1/2” W x 2” H

Fiberglass Center Console no Forward Box - 52"

Available for 52" Jon models. Can be ordered loose or installed, color matches boats exterior.

Dimensions: 16" L x 20 1/2" W x 31 1/4" H

For boat without floor, must order floor plate when ordered installed.

Part numbers to use when ordering from dealer:
2CON009772 - Loose
2CON009772-I - Installed
2CON009772A - Loose with steering
2CON009772A-I - Installed with steering
2FLOCENTERCONSOLE - Floor plate

Floor Mounted Leaning Post

Floor mounted leaning post provide a comfortable option when operating a center console.

Available in white only.

Dimensions: 37" L x 12" W x 29" H

Flotation Pods

Flotation pods are available to be added to any 52", 60" and 72" models. Pods help boats get up on plane faster, provide extra flotation and allow for easier access into the boat.

Add an additional stainless steel swim ladder for easier access into the boat.
If ordering pods after the boat is manufactured click here to view the placement diagram.

Fold Down Bench Seat

Available in 24" or 48" bench seats.

Color options are:
Olive Drab
Mocha
Tan
Grey
Neutral
SeaArk Water Oak
Mossy Oak® Break Up®
Mossy Oak® Shadow Grass®

Fold Down Fishing Seat

Available to add to any model, most models have one as standard.

Available in the following colors
Olive Drab
Mocha
Tan
Grey
Neutral
SeaArk Water Oak
Mossy Oak® Break Up®
Mossy Oak® Shadow Grass®
Check out the pedestals to complete the package or look at seat kits.

Fold Down Seat Accessories

Raise, mount, and determine the swivel of your fold-down seats.

Available accessories for fold-down seats.
13" Pedestal
Seat Mount
Locking Swivel
Non-locking Swivel

Fold Down Seat Kit

Instead of buying individual pieces to create a fold-down seat package. You can purchase the kit in a single or double version.

Kit includes: fold down seat, 13" pedestal, and mount.

Fuel Gauge

Fuel gauges are able to be added to a variety of models and are standard on specialty models.

Fuel gauges are engine specific gauges.

Gun Rack

The gun rack is a two-piece set that features slots to hold two guns.

Place the butt of the gun in the hook section and the barrel of the gun in the round part to securely hold your gun while riding. Each piece is independently mounted allowing for different gun lengths.

Gun/Rod Box

Gun/Rod Boxes are available in 5', 6', 7', or 8' lengths. Can be ordered loose or installed and can be painted any color.

Various lengths will not fit in all models.

5 Foot Gun Box: fits 42" and up models - dimensions: 60" L x 16" W x 11 1/4" H
6 Foot Gun/Rod Box: fits most 1860's and up - dimensions: 74" L x 16" W x 11 1/4" H
7 Foot Gun/Rod Box: fits most 1860's and up - dimensions: 86" L x 16" W x 11 1/4" H
8 Foot Gun/Rod Box: Fits most 2072's and up - dimensions: 98" L x 16" W x 11 1/4" H

Helm Seat Box

This seat box is an additional seating box that can be added as an optional drivers seat. Add a fold-down sit for comfort while driving.

Dimensions: 15" L x 17" W x 11" H

Horn Kit

The Horn kit is available to be added to a variety of models and is standard on specialty models.

Hour Meter

Be able to tell how many hours on your engine by adding an hour meter to any model.

Hour meters are engine specific gauges.

Humminbird Depth Finders

SeaArk is a full line Humminbird dealer.

Top Items:
Piranha Max 4
Helix 5 sonar G2
Helix 5SI GPS G2
Helix 7 Sonar G2
Helix 7SI GPS G2N
Helix 12 Chirp Mega SI GPS G2N
Solix 15 Chirp Mega SI GPS

Hydraulic Jackplate

Hydraulic jack plates are available to be added to any model. Jack plates help raise or lower the engine height to provide maximum performance.

Hydraulic Steering Upgrade

Upgrade most models to hydraulic steering, it comes as standard on specialty models.

Laid Back Bracket for Rod Holders

The Laid-Back Rod Holder is made to fit any rod holder. The base is at an angle which positions the rod in an adjustable angle to the water.

Dimensions: 3" L x 2" W x 3 1/4" H

Bracket only. Rod holder not included.

LED Light & Bracket

This LED light has 15 LED bulbs that are able to illuminate in clear white, red, or blue. This is mountable for lighting either the interior or the exterior of the boat.

Lights are available in camo only. The base can be painted to match the boat (will be base color if boat is camo).

LINE-X® Interior

LINE-X® interior spray is available for all models and can be added to a variety of parts.

This durable protective coating helps prevent wear and tear on the boats interior and can help keep the floor cooler during hot days.

Available Options:
Boat Interior
Archery Deck
Flotation Pods
Side Panels
Built-In Rod Boxes
Loose Parts (Large & Small)
Predator Engine Cover
Rear Hinged Lid

Color options are standard paint colors: OD, Kilim Beige, Tan and Sharkskin or Camoflage

Livewell Aerator

Aerator available for optional factory installed MV livewells.

Can be added to these livewells:
Rear Bench Seat 40 g Divided
25 g Bow Livewell for 2072" and up
Large MV Center Livewell
Large MV Side Livewell
X-Large MV Side Livewell
Cast & Blast Livewell
VJon Livewell
30 g Filtered Baitwell & Console

Manual Bilge Pump

Manual Bilge Pumps are available as options for all Jon boats and are standard on a variety of models.

Manual Jackplate

Manual jack plates are available to be added to any model. Jack plates help raise or lower the engine for maximum performance.

Micro Anchor Bracket

This bracket allows a Micro Anchor to be mounted anywhere on the caprail. The bracket is made from .125 gauge aluminum, a sturdy surface for most micro anchors.

Minn Kota Trolling Motors

SeaArk is a full line Minn Kota dealer and can order all parts. Contact your SeaArk dealer for items not listed.

Top Products
EDGE 45 Foot Control 36" Shaft
EDGE 45 Foot Control 45" Shaft
EDGE 55 Foot Control 52" Shaft
MAX 70 Foot Control 52" Shaft
MAX 80 Foot Control 52" Shaft
FT 80 Foot Control US2 52" Shaft
FT 112 Foot Control US2 52" Shaft
Terrova 80/US2 includes foot pedal 60" Shaft
Terrova 112/US2/IP LINK_BT includes foot pedal 60" Shaft
Ulterra 80/US2/IP LINK_BT
Ulterra 112/US2/IP LINK_BT
Ultrex 80/US2/IP LINK_BT
Ultrex 112/US2/IP LINK_BT

Outboard Protection Bar

Outboard protection bars can be added to any 72" model boat.

Power Pole Bracket

Power pole brackets are available to be added to any 72" flotation pods.

Dimensions: 11 13/16" L x 10" W x 9 1/8" H

Power Poles

SeaArk is a full line Power Pole dealer. Contact your SeaArk dealer to find which power pole will work best for your set up.

Top Options:
Sportsman 2 - 8'
Pro 2 Black - 8'
Blade Black - 8'
Blade Black - 10'

Pre Rig Center Console

Choose from a variety of available Pre Rigs for you center console boat. We carry all major engine brands. Check with your dealer to see which Pre Rig option is the best for your set up.

PreRig Side Console

Choose from a variety of available Pre Rigs for you side console boat.

We carry all major engine brands. Check with your dealer to see which Pre Rig option is the best for your set up.

Radio

Add some tunes while your hanging out on the water with our radio with bluetooth capabilities.

Rear Mounted Leaning Post

Attached to the rear deck, the rear mounted leaning post is for center console driving. Available to upgrade to black powdered coated. Add an the additional foot rest for even more comfort.

Dimensions: 34" L x 10 1/2" W x 27 1/2" H

Removable Back Rest for Gun Box

Add a back rest to any gun box to create a seating similar to a lounge seat. Available for 5ft, 6ft, 7ft, and 8ft gun boxes and can come in any upholstery color.
Dimensions for 5ft: 64 1/2" L x 12" W x 2 1/2" H
Dimensions for 6ft: 76 1/2" L x 12" W x 2 1/2" H
Dimensions for 7ft: 88 1/2" L x 12" W x 2 1/2" H
Dimensions for 8ft: 100 1/2" L x 12" W x 2 1/2" H

Rod Holder

The Single Rod holder is a piece of .125 gauge aluminum that allows for one rod to be held in place.

Dimensions: 16" L x 3 1/4" W x 3 3/4" H

Rod/Gun Box Cushion

Add a cushion to your rod/gun box. Available in 5', 6', 7' or 8' lengths and any upholstery colors.

Seat Track

Available to be added to a variety of models, seat track allows you the ability to slide fold down seats and cushions along the bow or stern deck.

Can be ordered in 36", 48" or by the foot.

Check out the seat track adapters and seat track kits for other options.

Seat Track Adapter

Seat track adapters allows you to go from using your fold down seats on pedestals to seat track.

Available options:
Fold down seat adapter
Alaskan low rise seat adapter
48" bench seat adapter
24" bench seat adapter

Seat Track Kit

Seat track kits come with seat track and one seat adapter. Available in 36" or 48" lengths.

Seat Track with Cushion Set

This set comes with seat track and two 24" flat cushions. Available to be used in a variety of models.

Shallow Water Anchor

Our shallow water anchor is a manual anchor that slides through a pipe ring attached to the caprail.

The anchor is made from .125 aluminum pipe and has an angled edge to make sticking the pole in place easier. The 10' pole can be used in depths up to 8 feet. This provides a great option for quick anchoring. Only available in black.

Small Side Seat

Add the additional side seat for extra seating along either side of the boat between the console and front deck. Available for 48" models and up.

Dimension: 23" L x 14 1/2" W x 12 1/2" H

Small Side Seat Cushion

Designed to be added to the lid of the small side seat box.

Speedometer

Available in a black or chrome face (max 65 mph) are available to be added to a variety of models and are standard on specialty models.

Square Bracket for Rod Holders

The Square Bracket Rod Holder is made to fit rod holders. The square base stand the rod holder straight up and down which hold the rod parallel to the water.

Dimension: 3" L x 3" W x 3 1/2" H

Stainless Seating Hardware Package

This package includes the upgrade to stainless steel seat mount, aluminum pedestals with stainless steed spud and stainless steel base receptacle.

Stainless Steel Grab Rail

Stainless steel grab rails are available for a variety of models.

Available consoles:
52" Fiberglass CC
52" Aluminum CC
60" Fiberglas CC
72" Fiberglass CC
Aluminum Flat Top CC

Upgrade to black powder coated.

Stainless Steel Steering Wheel

Upgrade any steering wheel to this 13" stainless steel wheel, knob included.

Stainless Steel Telescoping Swim Ladder

Stainless steel swim ladders are a great item to have when planning on getting in and out of the boat from the water.

Ladders must be ordered to be used on flotation pods, they can not be used without.

Dimensions: 23" L x 11" W x 3/4" H

Temperature Gauge

Add a temperature gauge to any model.

Tilt Helm

Choose a tilting helm for anti feedback or hydraulic steering.

Transom Saver

Transom savers help hold the engine in place while traveling.

This helps by putting less stress on the transom caused by the engine bouncing when hauling.

Tree Grabber

The Tree Grabber is handy for hunters who tie up in flooded timber.

The "stepped" design provides a secure grip designed to "hug" the tree using a strap. Preventing scuffing of the paint. The grabber is made from .125 gauge aluminum and can be painted to match any boat.

Dimensions: 3 1/8" L x 12" W x 4 1/4" H

Strap not included.

Trim Gauge

Trim gauges are able to be added to a variety of models and are standard on specialty models.

Upgraded Steering Wheel

Upgrade a standard Jon steering wheel to this. This steering wheel comes standard on all other models.

Urethane Paint

Upgrade any boat to have urethane paint. With 6 different color choices there's a paint that will coordinate with any vehicle that will be pulling it!

Color choices: Black Magic, Patriot Red, Coastal Green, Mystic White, Sparkle Silver, and Steel Blue

Suggest Interior Colors
Black Magic, Mystic White, and Patriot Red - Tan or Sharkskin
Coastal Green - Kilim Beige
Sparkle Silver - Sharkskin

Vinyl Interior

Vinyl interior is preferred in various areas. We offer vinyl interior on a variety of models.

Available for
Variety of boats
Side panels
Built-In Rod Box
Rear Hinged Lid
Color choices are tan or grey.

Volt Meter

Volt meters are able to be added to any model.

Volt meters are engine specific gauges.

Water Pressure Gauge

Water pressure gauges can be added to any model.

Water pressure gauges are engine specific gauges.

CATFISH

COASTAL

BASS & CRAPPIE

EASYS

COMMERCIAL

HUNTING

JONS

FISHING

RXV 752

TOP FEATURES

SPECIFICATIONS

STANDARD
FEATURES

ELECTRONICS

SAFETY & COMFORT

CUSTOM DETAILS

FLOOR PLAN

Standard

Camo

Urethane

Standard

Camo

CATFISH

COASTAL

EASYS

COMMERCIAL

BASS & CRAPPIE

HUNTING

JONS

FISHING

CATFISH

COASTAL

BASS & CRAPPIE

EASYS

COMMERCIAL

HUNTING

JONS

FISHING

RXV 752

TOP FEATURES

SPECIFICATIONS

STANDARD FEATURES

ELECTRONICS

SAFETY & COMFORT

CUSTOM DETAILS

FLOOR PLAN

Standard

Camo

Urethane

Standard

Camo

CATFISH

COASTAL

EASYS

COMMERCIAL

BASS & CRAPPIE

HUNTING

JONS

FISHING

STANDARD
FEATURES
